Ever Star Scissor Lift CFPT1012

The Ever Star Scissor Lift CFPT1012 is a powerful and versatile lifting machine designed for a variety of industrial and construction applications. With a maximum lift height of 10 meters and a capacity of 1000 kg, it can handle heavy loads and provide a safe and efficient working platform for workers.


The CFPT1012 scissor lift comes with a range of features designed to enhance safety, ease of use, and efficiency. Some of these features include:

  1. Automatic leveling system: The lift comes equipped with an automatic leveling system that ensures stability and safety while working at height. The system ensures that the lift is always level, even when working on uneven surfaces.

  2. Non-marking tires: The lift is fitted with non-marking tires that do not leave any marks on the floor, making it ideal for indoor use.

  3. Dual controls: The lift comes with dual controls, one at the base and one on the platform, allowing for easy operation and maneuverability.

  4. Emergency lowering system: The lift is equipped with an emergency lowering system that allows the platform to be lowered to the ground safely in case of a power failure or other emergency.

  5. Built-in charger: The lift comes with a built-in charger that allows for easy charging of the battery, ensuring that the lift is always ready to use.


The Ever Star Scissor Lift CFPT1012 offers several benefits to users, including:

  1. Increased efficiency: The lift's powerful motor and large platform allow for efficient and speedy lifting of heavy loads, reducing downtime and increasing productivity.

  2. Enhanced safety: The lift's automatic leveling system, non-marking tires, and emergency lowering system ensure that workers are safe while working at height.

  3. Easy to use: The dual controls and built-in charger make the lift easy to operate and maintain, reducing the need for specialized training.

  4. Versatility: The lift is suitable for a range of applications, from construction sites to warehouses, making it a versatile investment for any business.


Product Features:

    • Hydraulic drive system
    • Self-propelled scissor lift for high altitude work
    • Platform anti-collision switch
    • Foldable guardrail
    • Automatic brake system
    • Emergency stop button
    • Non-marking tire
    • Proportional control
    • Hour meter
    • Charging protection system
    • Tilt protection system
    • Strobe lamp
    • Oil pipe explosion-proof system

Standard Configuration:

    • Load capacities: 320 kg
    • Load capacities of extended platform: 113 kg
    • Maximum number of workers: 2
    • Working height: 2.2 m
    • Maximum platform height: 2.2 m
    • Length of the whole machine: 1895 mm
    • Overall length: 3200 mm
    • Overall height (guardrail unfolded): 2180 mm
    • Overall height (guardrail folded): 1910 mm
    • Platform size: 1670 x 740 mm
    • Platform extension size: 900 mm
    • Minimum ground clearance (stowed): 83 mm
    • Minimum ground clearance (raised): 16 mm
Optional Configuration:
    • Overload limit
    • AC power on the platform
    • Wheelbase: 1240 mm
    • Minimum turning radius (inner wheel): 0
    • Minimum turning radius (outer wheel): 1190 mm
    • Lifting motor: 24V/3.3Kw
    • Machine running speed (stowed): 3.5 km/h
    • Machine running speed (raised): 0.8 km/h
    • Rising/descending speed: 60/40 sec
    • Batteries: 4X6V/240Ah
    • Charger: 24W25A
    • Maximum working slope: 25%
    • Platform work light
    • Chassis to platform air duct

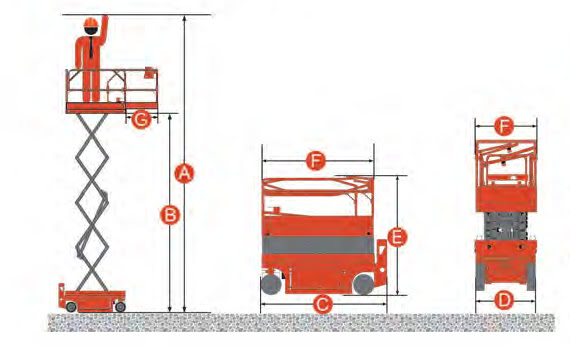

    Product Weight: 2640 kg Gradeability: 25% Product Dimensions:

    • Width: 1120 mm
    • Length: 2270 mm
    • Height (guardrail unfolded): 2480 mm
    • Height (guardrail folded): 1910 mm


    The Ever Star Scissor Lift CFPT1012 is a reliable, safe, and efficient lifting machine that is suitable for a range of applications. Its range of features and benefits make it an ideal investment for businesses looking to increase efficiency, enhance safety, and improve productivity.
